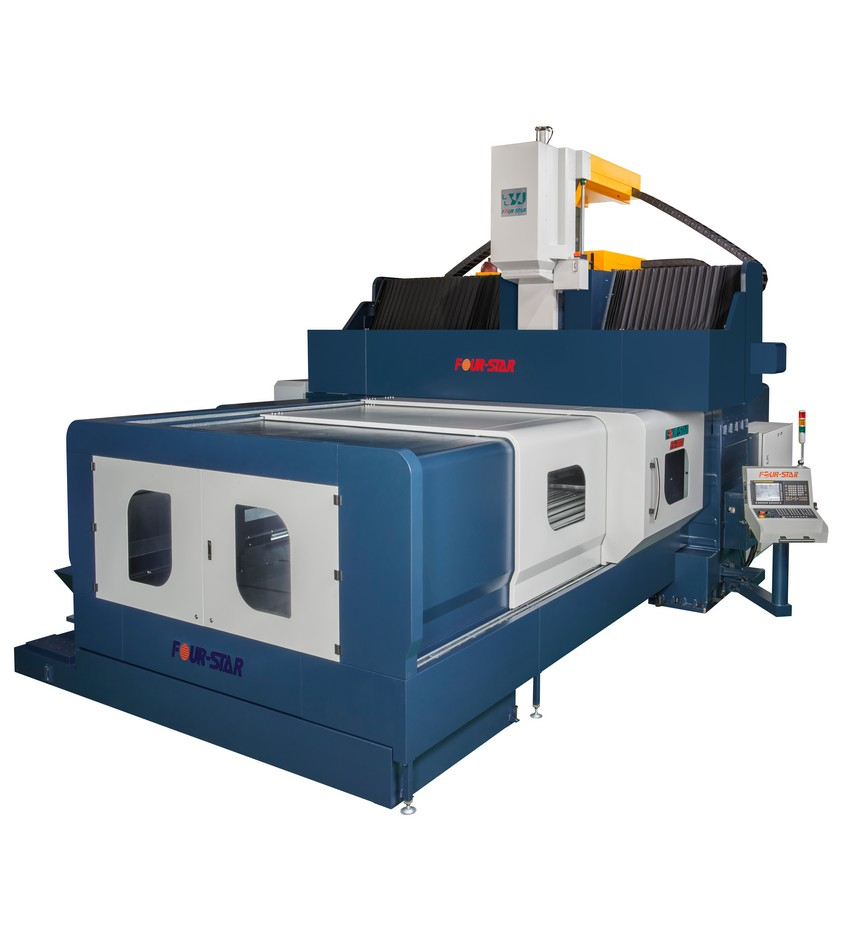

Three axes travel of Fixed Double Columns Machining Center
X-Travel: 2200 ~ 6000m
Y-Travel: 1300 ~ 5400mm
Z-Travel: 800 mm(opt. 1100)/1100 mm(opt. 1400 or 1500)
- FANUC 0iMF + 10.4"LCD
- Spindle cooler
- Spindle air blast
- N2 counter balance system
- Two stage H/L planetary gearbox
- Auto lubrication system
- Program end alarm lamp
- Rigid tapping
- Electrical cabinet heat exchanger
- USB/RJ-45/Ethernet interface
- Cutting coolant system
- Dual screw type chip remover
- Steel-belt chip conveyor with cart
- Chain type 32T ATC
- Semi-enclosure splash guard(FD14~FD26A)
- Open type splash guard (FD28~FD54)
- ATC auto door
- Foot pedal switch
- Working lamp
- Base leveling screw & foundation bolts
- Tool kit & Operator's manual
- Air / water cleaning equipment
- X-axis travel 7/8/9/10m (FD-28~42)
- FANUC 0iMF plus / Mitsubishi / Siemens / Heidenhain controller
- Spindle power 30/37kW with gearbox
- High speed spindle (8,000~24,000rpm)
- Coolant through spindle (CTS)
- 90 degree milling head (Auto, semi-auto, manual)
- Extend milling head (Auto, semi-auto, manual)
- AC swiveling milling head (Auto, semi-auto, manual)
- AHC system (for auto milling head)
- Toggle head stand (for semi-auto, manual milling head)
- Five face milling head (Fixed type)
- Universal milling head (Fixed type)
- 5 axis simultaneous milling head
- Y travel extend 650mm (for auto 5F machining)
- Heavy duty RAM 550x550mm (FD-36 and up)
- Heavy duty RAM 650x650mm (FD-36 and up)
- X,Y,Z axis linear scale
- Tool length measurement
- Auto workpiece measurement
- CNC rotary table (indexed, simultaneous)
- Coolant thourgh tool holder device
- Full enclosure splash guard (with top)
- Transformer
- Oil skimmer
