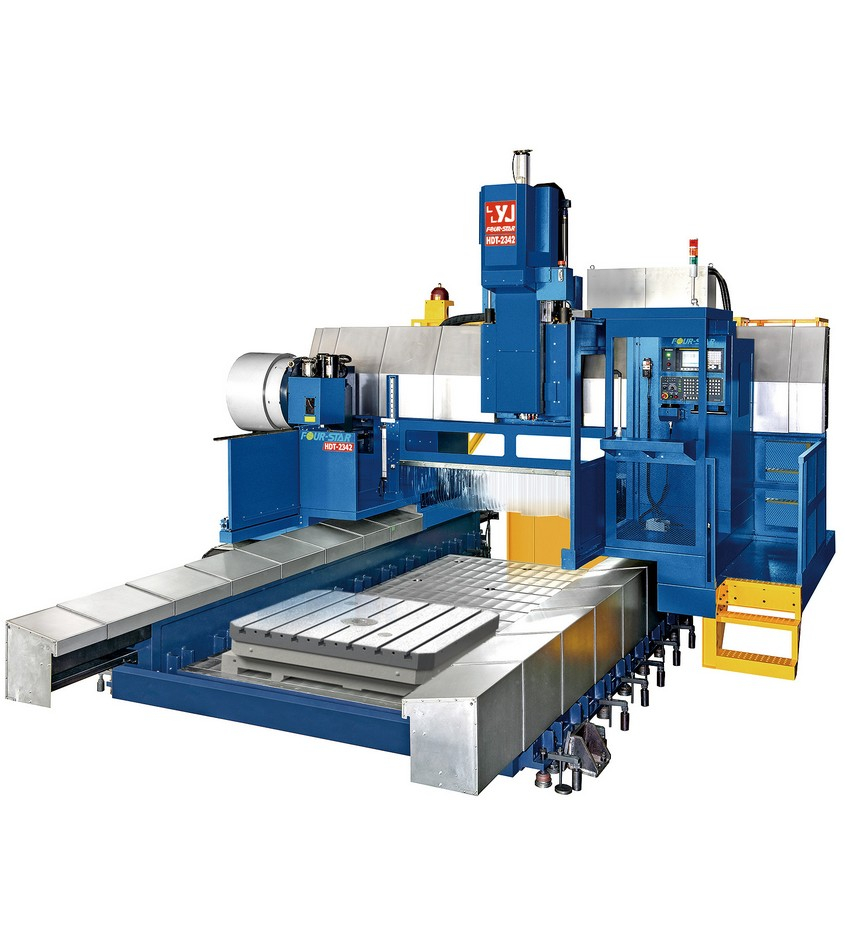

Three axes travel of Medium Travelling Double Columns Machining Center
Distance between two columns: 1850/2150/2450/2850 mm
X-axis travel: 2 m ~ 20m
Z-axis travel: 800(1100)mm
- FANUC 0iMF + 10.4”LCD
- Spindle and Gear-box cooler
- Spindle air blast
- Cutting coolant system
- Auto lubrication system
- Rigid tapping
- Electric cabinet heat exchanger
- Program end alarm lamp
- Ethernet / USB / RJ-45 interface
- Planetary gearbox H / L ratio with linear scale
- Air / Water cleaning equipment
- Twin spiral type chip remover with linear scale (Y ≧ 4.8m)
- Steel belt chip conveyor with cart
- Working lamp & Tool kit servo control with two linear scales
- Operator / Maintenance manual
- X/U axis steel telescopic cover, Y axis Javara cover
- All axis linear guideway
- Arm type ATC with tool magazine
- ATC auto door
- Foot switch for tool away
- Leveling screw + foundation bolt
- Mobile operator room
- Maintenance ladder
- X-travel by rack-pinion
- Y-travel by rack-pinion
- X & W travel by synchronize
- Open splash guard
- SIEMENS or HEIDENHAIN Controller
- Twin gate / Twin bridge / Twin ram
- 30/37kW + GTP 2G300 (max. 4500 rpm)
- High speed direct drive spindle 22/26kW-10,000 rpm (for mould machining)
- CTS 20~70 bars (for main spindle)
- Heavy duty RAM 550mm × 550mm / 650 x 650 mm
- Transformer
- Oil skimmer
- Electrical cabinet air conditioner
- Y axis steel telescopic cover
- CNC rotary table (index or simultaneous)
- Extension head (Auto, manual)
- 90 degree milling head (Auto, manual, semi-auto)
- 500mm extension head(manual, auto)
- 90 degree extension milling head (Auto, manual)
- AC swiveling (Auto, manual, semi-auto)
- AHC system (for auto milling head)
- Heidenhain / Fagor linear scale
- Five face miling head / Universal head (fixed type)
- Four axis simultaneous head (TRAMEC / KESSLER)
- Five axis simultaneous head (TRAMEC / KESSLER)
- Workpiece measurement
- Tool length measurement
