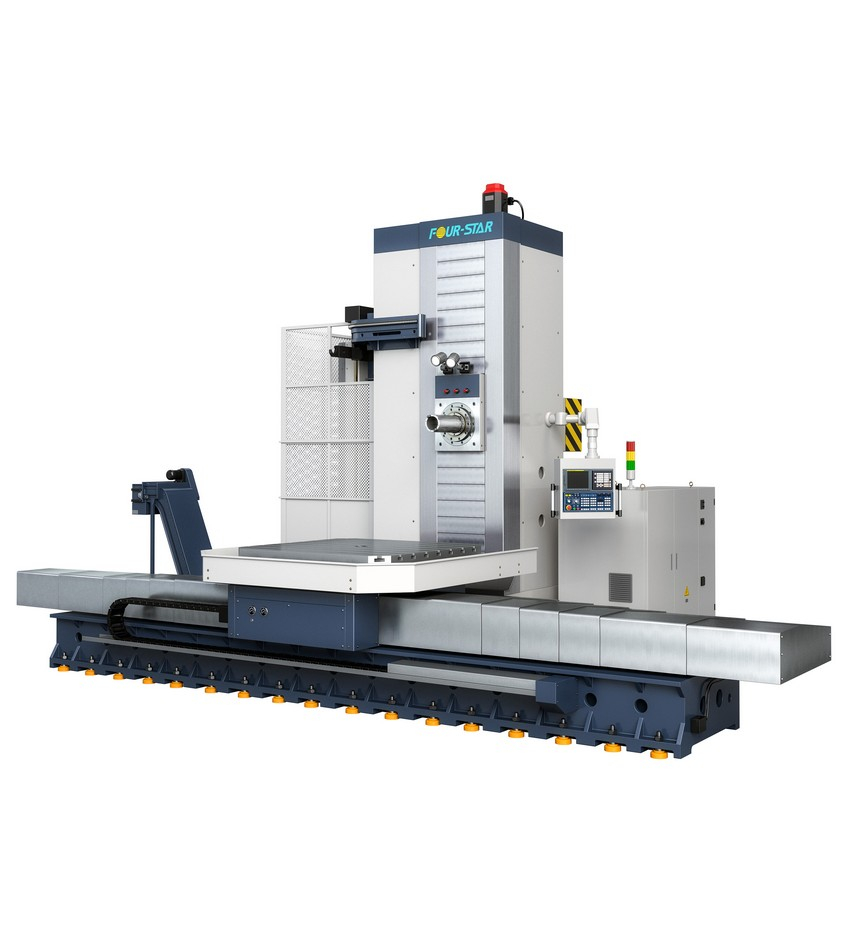

Four-axes travel of T-bed Type Machining Center (boring bar)

X-axis travel(table moving): 3200 mm

Y-axis travel(saddle up-down): 2000 mm

Z-axis travel(column moving): 1600 mm

W-axis travel(boring bar extend): 700 mm

• FANUC 0iMF + 10.4" LCD
• X/Y axis roller LM / Y-axis boxway
• X/Y/Z/W axis linear scale
• X/Y/W/B axes simultaneous
• Rigid taping
• Spindle oil cooler
• Cabinet heat exchanger
• ATC-40 pcs
• Enclosure splash guard
• Working lamp
• Foot switch for tool away
• Coolant spray system
• Auto lubrication system
• CTS preparation
• Screw & conveyor chip remove system
• AICC II (200 blocks) + CF card 1G
• USB / RJ-45 / RS232
• Levelling screw & foundation bolt

• FANUC 31iMB / SIEMENS / Heidhain 530 controller
• Rotary table 1416 / 1618 / 2025 / 2530
• Spindle motor (α40 / αp50)
• CTS 30~70 bar
• Air conditioner of cabinet
• Spindle extend sleeve (250 / 350 / 450 mm)
• Milling attach head (90° / universal / orthogonal)
• Contouring head (Cogsdill ZX)
• Facing head (UT)
• Tool magazine (60 T / 90 T)
• Workpiece measurement
• Tool length measurement
• Right angle support block
• Transformer
• Full enclosure splash guard
